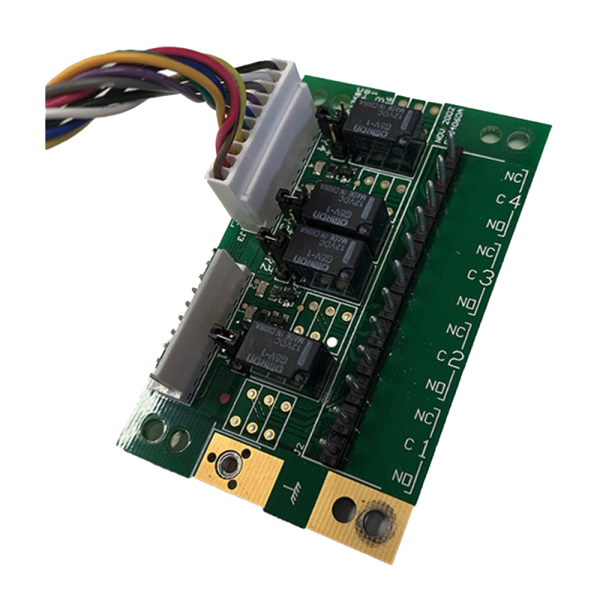

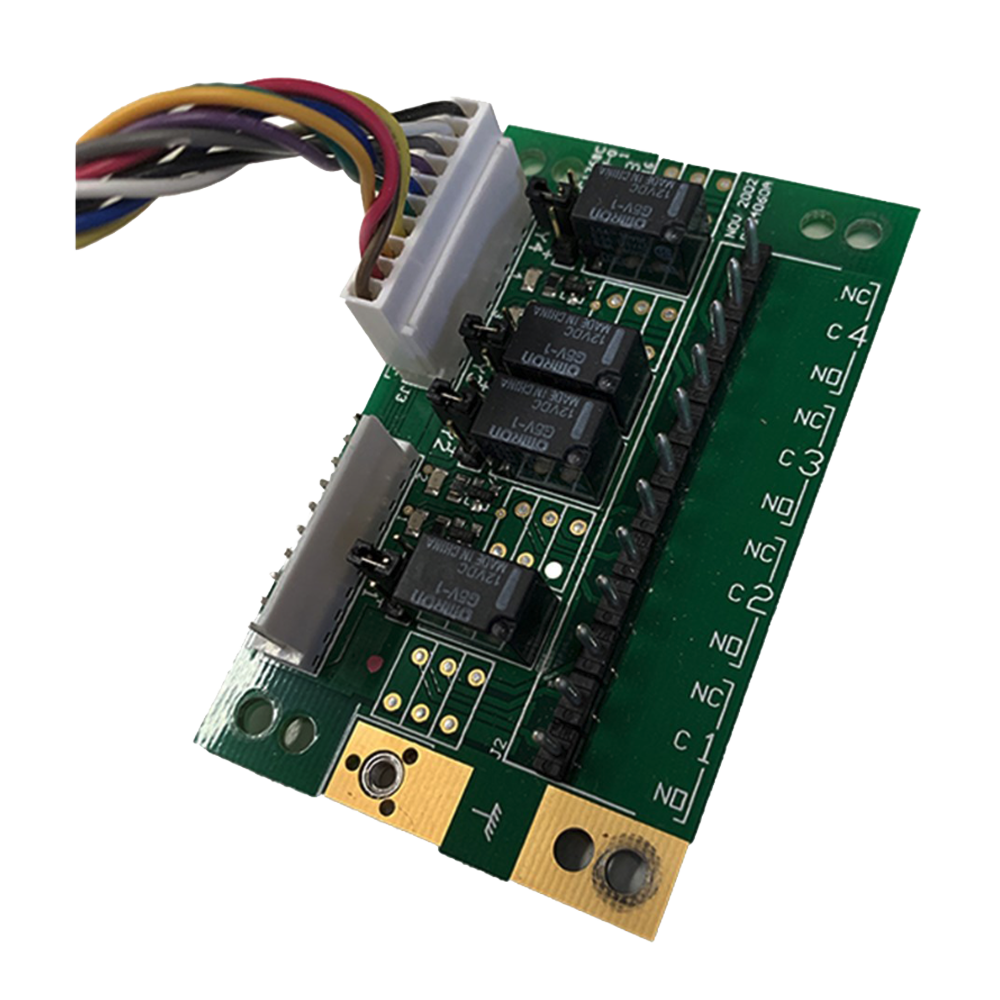

ARI-TC-TS0840 Tecom Panel – 4 Way Relay

Key Features

Tecom Panel, 4 Way Relay

The TS0840 is a 4-way output expander board that provides 4 relays to the Challenger Panel (one allocated to stobe), 4 relays to the door/lift controllers, or

a possible 8 when tow are used on a TS0820 DGP. When fitted to a Challenger Panel or door/lift controller, the TS0840 cannot be combined with other relay boards.

FEATURES

• 8 input expander can increase number of input devices to 32 in a single DGP
• Expand total number of inputs in a system to 256
• Four or Eight Form C relay outputs on board
• Expand total number of outputs in a system to 255

SKU: ARI-TC-TS0840
