Milesight KIT C5366-NX-256GB NX OpenVision Embedded Bullet Camera Bundle

OpenVision Pro Series

SKU MS-KIT-C5366-NX-256GB Categories , Tags , ,

Key Features

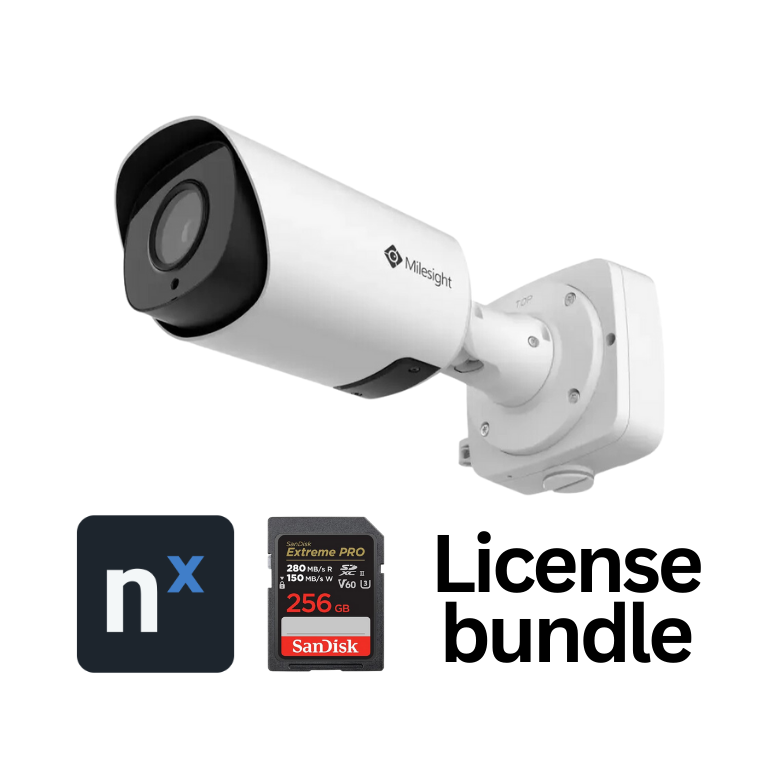

OpenVision – Bundle kit – Includes 1X NX Witness GEN-6 Pro License, 1X SanDisk – Extreme PRO 256GB SD Card.

Milesight AI Motorized Pro Bullet Plus Network Camera with NX Embedded (License Extra) 12v and POE, 5mp, 2.7-13.5mm Lens WA62 Junction Box

Network Optix VMS – NX witness embedded

Support to register the maximum number of the camera-upto 4 cameras (purchase the license with 4×NXchannel)

Total band width:Upto20Mbps.

*Al Mode can be enabled for both 1and 4 camera setups.

Note,for external connections, only basic video streams are supported, and meta data is not supported.

Optional – SD Cards available up to 1TB – (Call our sales team)

SKU: MS-KIT-C5366-NX-256GB

Specifications

Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

5MP
Mobile Compatible

False
Vandal Rating

IK10
Power Consumption

Typical:4.5W(DC),5.5W(POE) MAX:7.8W(WithIRon,DC),9.6W(WithIRon,POE)
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Series

OpenVision Pro Series
Dimensions

301mmX108mmX126mm
Weight

1630g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Network Interface

IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP, UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2
Storage

Yes
Audio Compression

G.711/AAC/G.722/G.726
Audio Output

16~256kbps
CPU

Dual-core64-bitArmCA53processor
Warranty

3/5 extended Years
Body Type

Bullet
Alarm Linkage

True
Audio Capability

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
Explosion Proof

False
Iris Type

Auto
Day/Night

False
Removable IR-Cut Filter

False
ROI

Up to 8 areas
Smart Detection

Yes
Smart Tracking

Yes
Software Development Kit

False
Water and Dust Resistant

False
Web Browser

Yes
WDR Technology

Yes

Downloads

Milesight C5366-FIPKG1 Data Sheet
