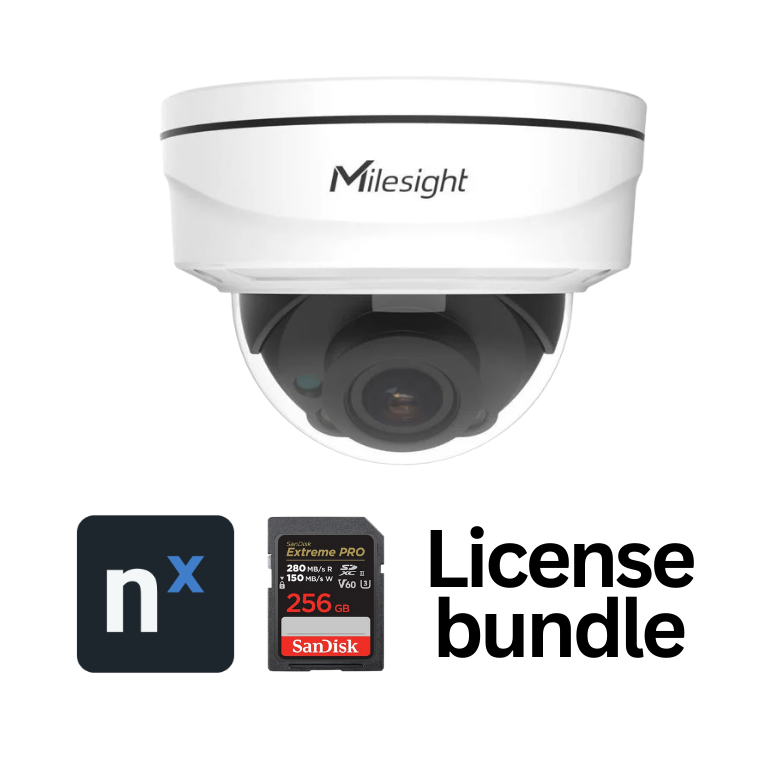

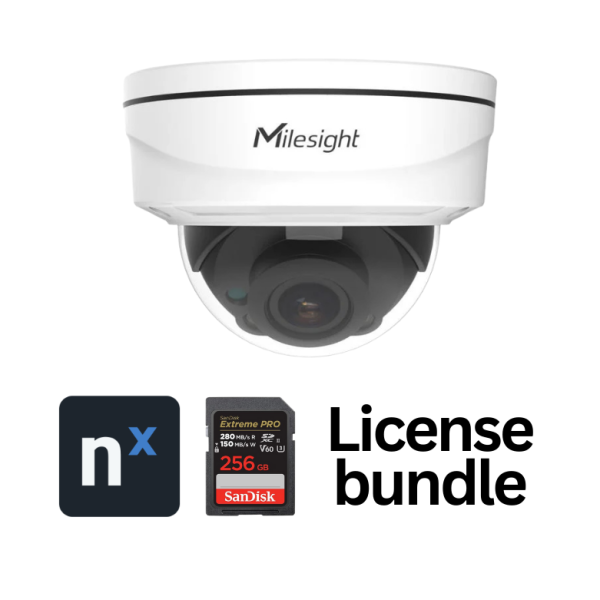

Milesight KIT C5372-NX-256GB OpenVision Embedded Dome Camera Bundle

SKU MS-KIT-C5372-NX-256GB Categories , Tags , ,

Key Features

Milesight NX Embedded Dome Camera Bundle – Includes 1 x MS-C5372-FIPKG1, 1 x NX Witness GEN-6 Pro License, 1 x SanDisk – Extreme PRO 256GB SD Card

Milesight AI Motorized Pro Dome Camera /2.7~13.5mm lens Audio Out

Network Optix VMS – NX witness embedded

Support to register the maximum number of the camera-up to 4 cameras (purchase the license with 4×NXchannel)

Total band width: Up to 20Mbps.

*Al Mode can be enabled for both 1and 4 camera setups.

Note, for external connections, only basic video streams are supported, and meta data is not supported.

Optional – SD Cards available up to 1TB – (Call our sales team)

SKU: MS-KIT-C5372-NX-256GB

Specifications

Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

5MP
Mobile Compatible

False
Vandal Rating

IK10
Power Consumption

Typical:4.5W(DC),5.5W(POE) MAX:7.8W(WithIRon,DC),9.6W(WithIRon,POE)
Power Input

PoE(802.3af)/DC12V±20%,Dual power supply redundancy
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Series

OpenVision Pro Series
Dimensions

Φ143mmX108.4mm
Weight

1100g
Atr61

-40℃~60℃
Humidity

0~90%(Non-condensing)
Certifications

NDAA
Network Interface

1*RJ4510M/100MEthernetPort
Audio Compression

G.711/AAC/G.722/G.726
Audio Output

Yes
Warranty

3/5 extended Years
Alarm Input

Yes
Body Type

Dome
Alarm Linkage

False
Audio Capability

Yes
Audio Effective Range

Yes
Audio Input

Yes
Auto-Tracking

Yes
Basic Event Detection

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
Explosion Proof

False
IR Distance

Upto50m(3.0~10.5mm/2.7~13.5mm) Up to 90m(7~22mm)
Iris Type

Auto
Day/Night

True
Removable IR-Cut Filter

False
ROI

Up to 8 areas
Software Development Kit

False
Water and Dust Resistant

False
WDR Technology

Yes
Working Humidity

0~90%(Non-condensing)
Camera Features

NX witness embedded camera

Downloads

Milesight MS-C5372-FIPKG1 Data Sheet
