Milesight MS-C5366-FIPKG1 OpenVision Pro-series bullet

Pro-Series Open Vision

SKU MS-C5366-FIPKG1 Categories , , , Tags ,

Key Features

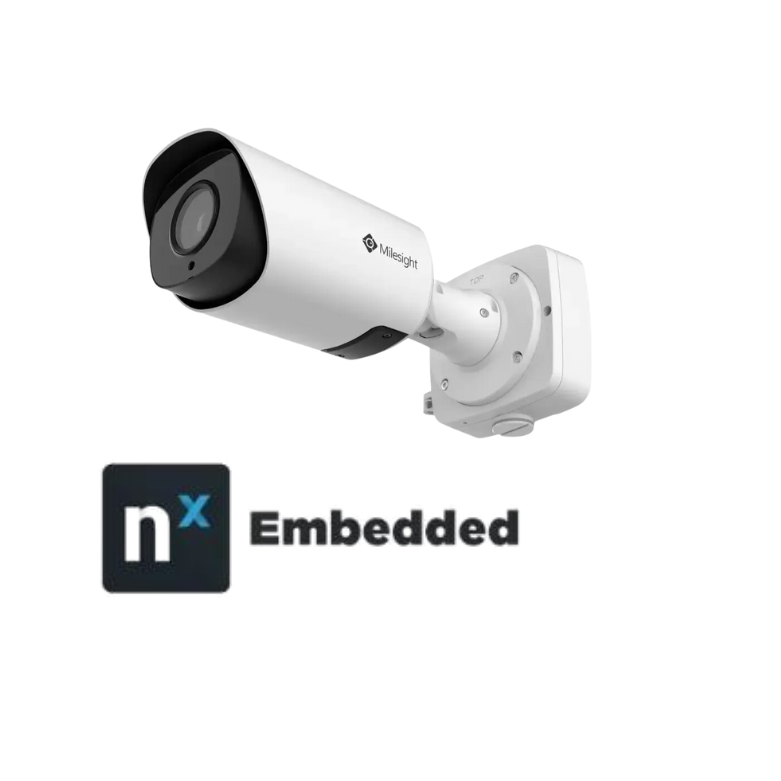

Milesight AI Motorized Pro Bullet Plus Network Camera with NX Embedded (License Extra) 12v and POE, 5mp, 2.7-13.5mm Lens wA62 Junction Box

Network Optix VMS – NX witness embedded

Support to register the maximum number of the camera-upto 4 cameras (purchase the license with 4×NXchannel)

Total band width:Upto20Mbps.

*Al Mode can be enabled for both 1and 4 camera setups.

Note,for external connections, only basic video streams are supported, and meta data is not supported.

Specifications

Brand

Milesight
Mobile Compatible

False
Alarm Linkage

True
Explosion Proof

False
Day/Night

False
Removable IR-Cut Filter

False
Software Development Kit

False
Water and Dust Resistant

False
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

5MP
Vandal Rating

IK10
Power Consumption

Typical:4.5W(DC),5.5W(POE) MAX:7.8W(WithIRon,DC),9.6W(WithIRon,POE)
Power Input

PoE(802.3af)/DC12V±20%,Dualpowersupplyredundancy
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Series

OpenVision Pro Series
Dimensions

301mmX108mmX126mm
Weight

1630g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Network Interface

IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP, UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2
Storage

No
Audio Compression

G.711/AAC/G.722/G.726
Audio Output

16~256kbps
CPU

Dual-core64-bitArmCA53processor
Warranty

2/3Years
Body Type

Bullet
Audio Capability

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
Iris Type

Auto
ROI

Up to 8 areas
Smart Detection

Yes
Smart Tracking

Yes
Web Browser

Yes
WDR Technology

Yes

Downloads

Milesight C-5366-FIPKG1 Data Sheet

Milesight How to Set Up NX guide
