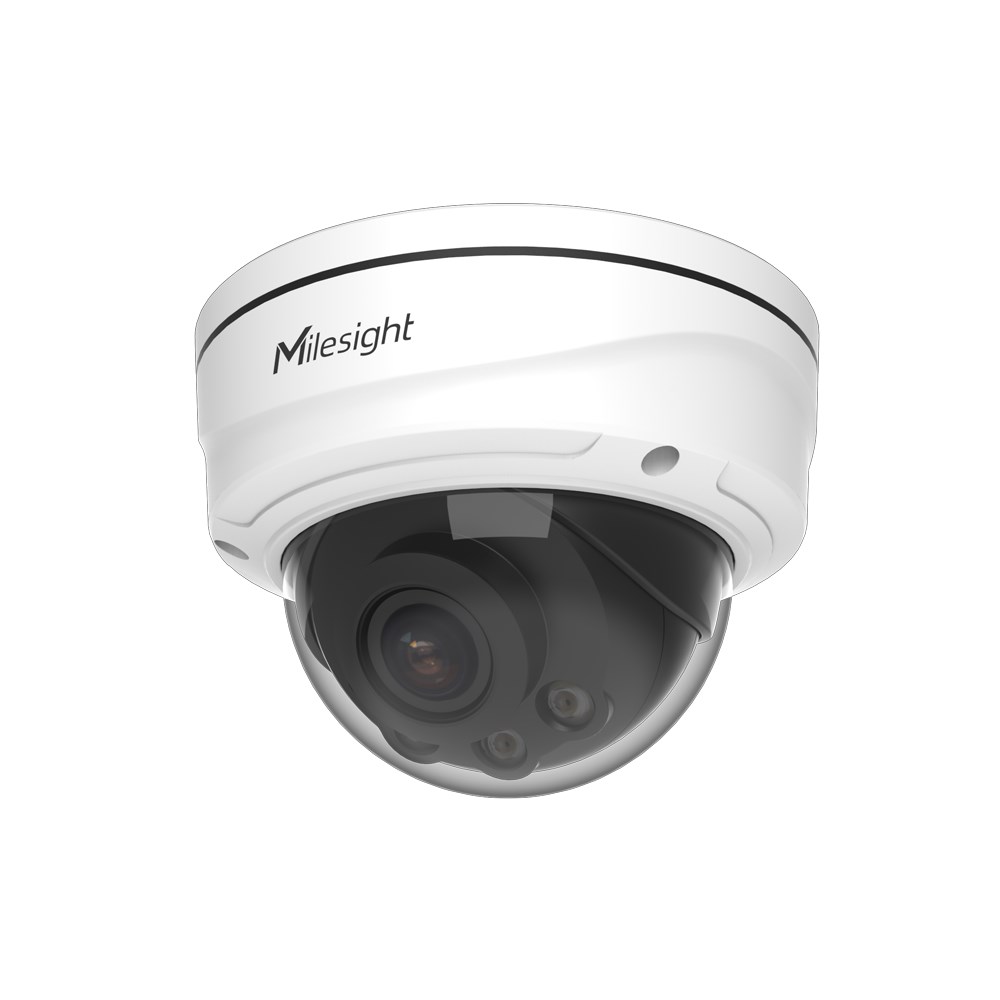

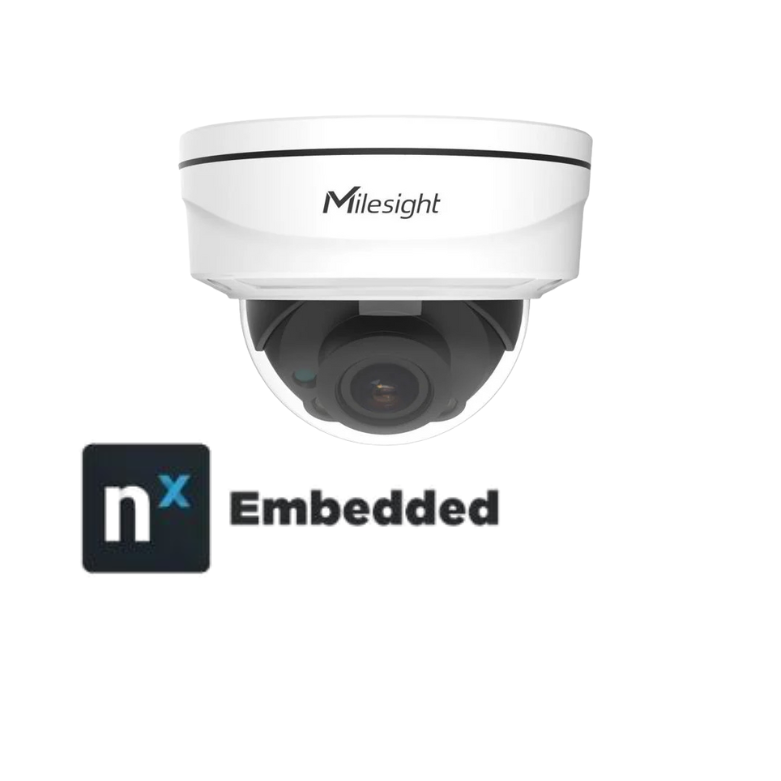

Milesight MS-C5372-FIPKG1 OpenVision Pro-series Dome

OpenVision Pro Series

SKU MS-C5372-FIPKG1 Categories , Tags ,

Key Features

Milesight AI Motorized Pro Dome Camera /2.7~13.5mm lens Audio Out

Network Optix VMS – NX witness embedded

Support to register the maximum number of the camera-up to 4 cameras (purchase the license with 4×NXchannel)

Total band width: Up to 20Mbps.

*Al Mode can be enabled for both 1and 4 camera setups.

Note,for external connections, only basic video streams are supported, and meta data is not supported.

SKU: MS-C5372-FIPKG1

Specifications

Mobile Compatible

False
Alarm Linkage

False
Explosion Proof

False
Day/Night

True
Removable IR-Cut Filter

False
Software Development Kit

False
Water and Dust Resistant

False
Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

5MP
Vandal Rating

IK10
Power Consumption

Typical:4.5W(DC),5.5W(POE) MAX:7.8W(WithIRon,DC),9.6W(WithIRon,POE)
Power Input

PoE(802.3af)/DC12V±20%,Dualpowersupplyredundancy
Series

OpenVision Pro Series
Dimensions

Φ143mmX108.4mm
Weight

1100g
Atr61

-40℃~60℃
Humidity

0~90%(Non-condensing)
Certifications

NDAA
Network Interface

1*RJ4510M/100MEthernetPort
Storage

Yes
Audio Compression

G.711/AAC/G.722/G.726
Audio Output

Yes
Alarm Input

Yes
Body Type

Dome
Audio Capability

Yes
Audio Effective Range

Yes
Audio Input

Yes
Auto-Tracking

Yes
Basic Event Detection

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
IR Distance

Upto50m(3.0~10.5mm/2.7~13.5mm) Upto90m(7~22mm)
Iris Type

Auto
ROI

Up to 8 areas
Working Humidity

0~90%(Non-condensing)
Camera Features

NX witness embedded camera
Warranty

2/3Years
Pack Size

1

Downloads

Milesight How To Set up NX guide
