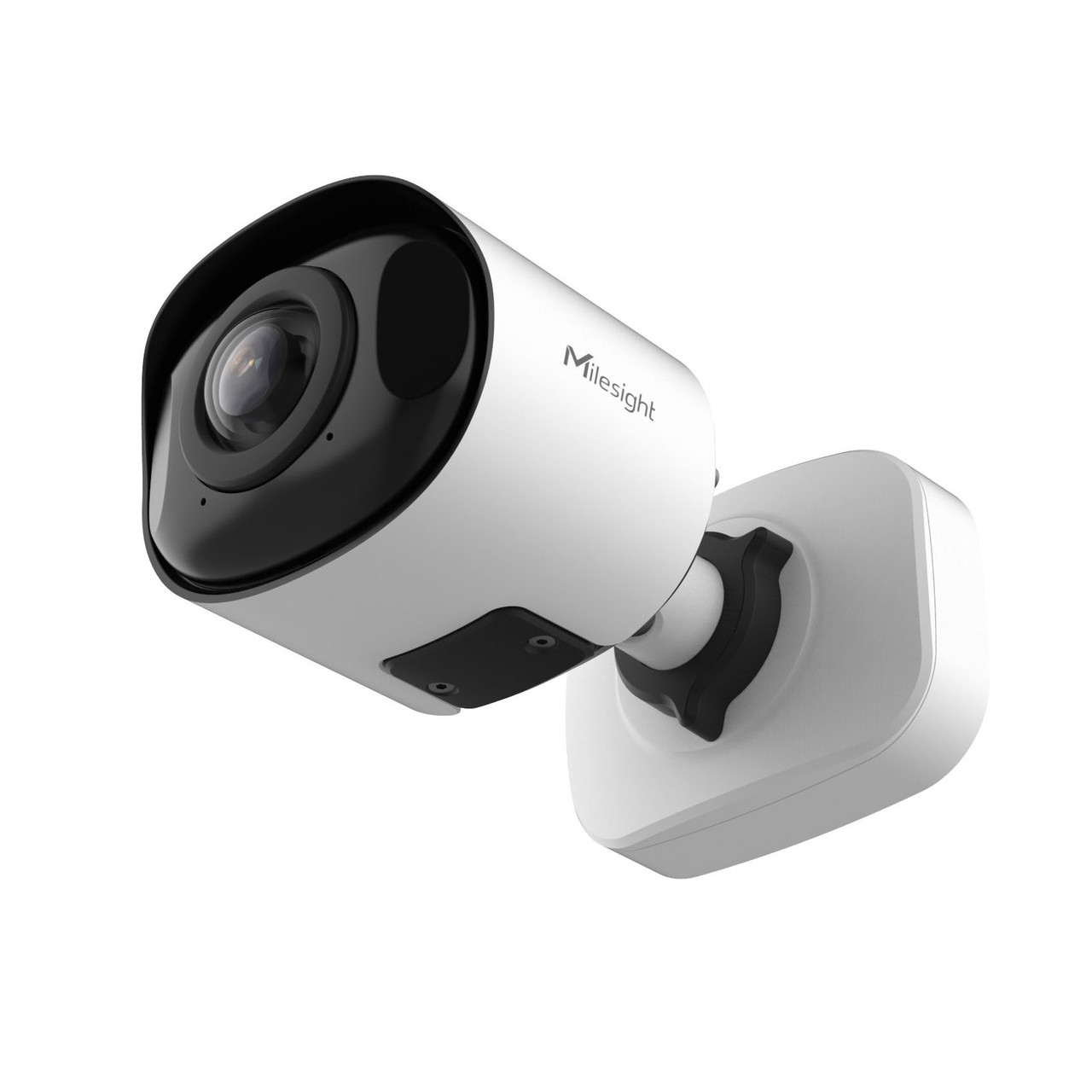

Milesight MS-C8165-PE/W AI 180° Panoramic Bullet Camera

Panoramic Bullet Camera White

SKU MS-C8165-PE/W Categories , , , Tag

Key Features

Milesight AI 180° Panoramic Mini Bullet Network Camera in WHITE: 8MP, 4K, 3840*2160 @25fps, Fixed Lens 1.68mm, 15m IR, IP67
NDAACompliance

120dBSuper WDR(Excellent performanceeven when the ratio of the luminosity of brightest and darkest is up to 120dB.)

AdvancedFunctions(Boasting to support various advanced functions such as HLC, ROI.)

1TB(Supportingultra-large external microSD/SDHC/SDXC card storage up to 1TB.)

Built-in Microphone(Using advanced codecs to provide clearer voice and robust performance.)

SmartStream(Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+ saves 70%~80% bandwidth that of H.264.)

SKU: MS-C8165-PE/W

Specifications

Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

4K
Mobile Compatible

False
Vandal Rating

IK10
Power Consumption

Max.:7.1W(DC12V),8.4W(PoE)
Power Input

PoE(802.3af)/DC12V±10%
Series

Panoramic
Dimensions

95.8mmX74mmX158.5mm
Weight

630g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Storage

SupportmicroSD/SDHC/SDXCCardLocalStorage,upto1TB
Warranty

2/3Years
Alarm Input

Yes
Body Type

Bullet
Alarm Linkage

False
Audio Capability

Yes
Audio Effective Range

Yes
Audio Input

Yes
Audio Interface

Yes
Basic Event Detection

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
Explosion Proof

False
IR Distance

15M
Main Stream

Yes
Day/Night

False
Privacy Mask

Yes
Removable IR-Cut Filter

False
ROI

Up to 8 areas
Scheduled Task

Yes
Security

Yes
Software Development Kit

False
Sub Stream

Yes
Third Stream

Yes
Water and Dust Resistant

False
Video Motion Detection

Yes
Working Humidity

0~95%(Non-condensing)

Downloads

Milesight C8165-PE/W Data Sheet
