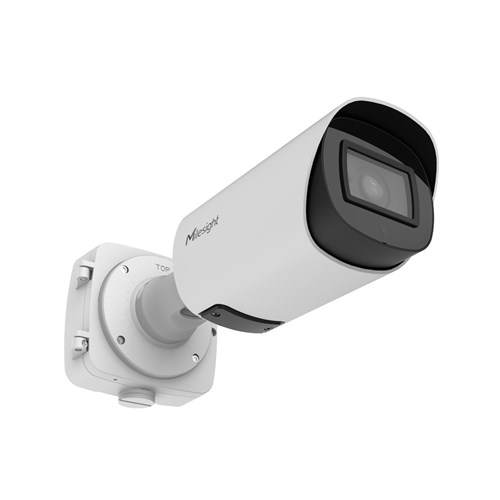

Milesight MS-C8166-FPE/W AI Motorized Bullet Camera

Pro Series

SKU MS-C8166-FPE/W Categories , , , Tags ,

Key Features

Milesight AI Motorized Pro Bullet Plus Network Camera in WHITE: 8MP, 4K 3840*2160 @30fps, Motorized lens  2.7~13.5mm, 65m IR, IP67
NDAACompliance

Smart IR II (Combining the High Beam and Low Beam to adjust IR intensity to fit different lighting conditions.)

HLC(High Light Compensation. Improving image visibility under strong light sources.)

140dB Super WDR (Excellent performance even when the ratio of the luminosity of brightest and darkest is up to 140dB.)

90fps High Frame Rate (Camera can easily catch images with no latency despite of the high-speed movement.)

1TB(Supporting ultra-large external microSD/SDHC/SDXC card storage up to 1TB.)

Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+ saves 70%~80% bandwidth that of H.264.)

SKU: MS-C8166-FPE/W

Specifications

Mobile Compatible

False
Alarm Linkage

False
Explosion Proof

False
Day/Night

True
Removable IR-Cut Filter

False
Software Development Kit

False
Water and Dust Resistant

True
Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

4K
Vandal Rating

IK10
Power Consumption

Max.:13.5W(DC12V),16.1W(PoE)
Power Input

PoE(802.3af)/DC12V±10%
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Series

Pro Series
Dimensions

301mmX108mmX126mm
Weight

1630g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Storage

NAS(SupportNFS,SMB/CIFS),ANR
Audio Compression

G.711/AAC/G.722/G.726
Audio Output

No
Warranty

2/3Years
Body Type

Bullet
Audio Capability

Yes
Audio Input

Yes
Audio Interface

Yes
Basic Event Detection

Yes
Digital Zoom

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
IR Distance

Up to 65m
Iris Type

Auto
Main Stream

Yes
Network Storage

Yes
ONVIF

Yes
Privacy Mask

Yes
ROI

Up to 8 areas
Scheduled Task

Yes
Smart Detection

Yes
WDR Technology

Yes
Working Humidity

0~95%(Non-condensing)

Downloads

Milesight C8166-FPE/W Data Sheet
