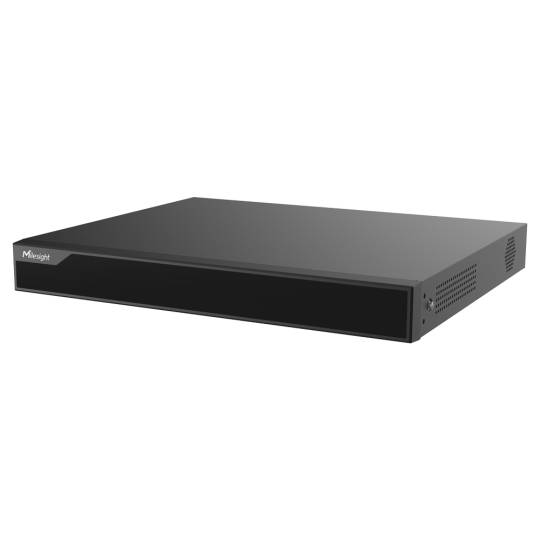

Milesight – MS-NXNVR – NDAA NX Embedded NVR

Milesight OpenVision

Key Features

Milesight NDAA NX Embedded NVR – Linux Ubuntu 22.04.4 LTS –

Supports up to 16 Channels

(non POE) 1U,

Supports 2x 20TB, 2*RJ45 Gbps, 2*HDMI Port, 1*DP Port –

NX Licenses not included

 **Headless, Not recommended for local continuous live display or review**

SKU: MS-NXNVR

Specifications

Brand

Milesight

Mobile Compatible

False

PoE

False

Facial Recognition

False

Pack Size

1

Compression Rate

H.265/H.264/MJPEG

HDD Capacity

Up to 20TB per Disk

Switches/POE

No

Dimensions

380mm(W) X 317.6mm(D) X 51.8mm(H)

Weight

2.2Kg

Atr61

0°C to 35°C (32°F to 95°F)

Humidity

10% to 90% RH (no freezing and no condensation)

Certifications

NDAA

Network Interface

2*1000Mbps RJ-45 Ports

Interface

Rear panel: 2*USB 2.0, 2*USB 3.0, 1*USB-C Port

Power Supply

AC 100-240V, 50-60Hz, DC 12V

Audio Compression

G.711/AAC/G.722/G.726

Warranty

3 Years

Audio Capability

1*BNC In, 1*BNC Out

Number of Channels

16-CH

Event Action

Yes

Event Trigger

Yes

Two Way Audio

Yes

USB Interface

Yes

Downloads

Milesight OpenVision NVR Data Sheet
