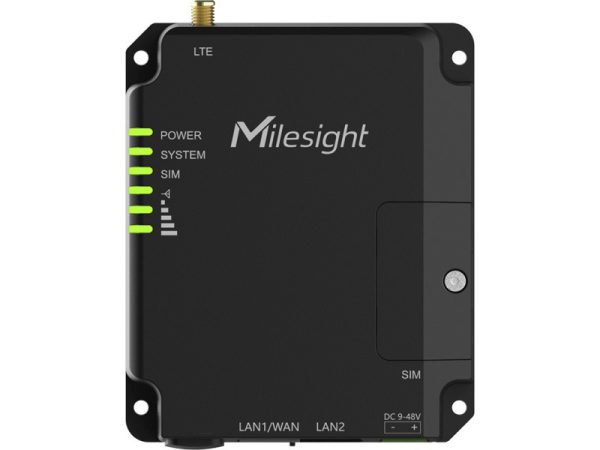

Milesight UR32L-L04AU Lite Industrial Cellular Router 3 & 4G

Network Router

SKU MS-UR32L-L04AU Category Tag

Key Features

Milesight Lite Industrial Cellular Router, 3G & 4G, 1x Mini SIM slot, 2x 10/100 Mbps Ethernet Ports, IP30

Industrial Grade Design for Harsh Environment

Rugged And Pocket-Sized Design

Dual SIM

2*10/100Mbps(2*LAN or 1*WAN+ 1*LAN)

1X RS232/RS485

1X digital inputand 1 digital output

1X MicroSD

PoE is optional;Wi-Fi/GPS (alternative)

Supports ModbusRTU/TCP

OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE

SKU:MS-UR32L-L04AU

Specifications

Brand

Milesight

Mobile Compatible

True

Power Consumption

-40°C to +70°C – Reduced Cellular Performance Above 60°C

Power Input

9- 48VDC (48 V is needed for PoE output)

Dimensions

108 x 90 x 26mm

Weight

271g

Atr61

-40°C to +70°C – Reduced Cellular Performance Above 60°C

Humidity

0% to 95% (non-condensing)

Certifications

CE, FCC, RCM, NBTC, JATE,Telec

PoE

True

Warranty

1 year

Managed

False

Number Of Ports

1× RS232 (RS485 Hardware Optional)

Rack Mount

False

Operating Temperature

-40°C to +70°C – Reduced Cellular Performance Above 60°C

Pack Size

1

Downloads

Milesight UR32 Router Data Sheet
