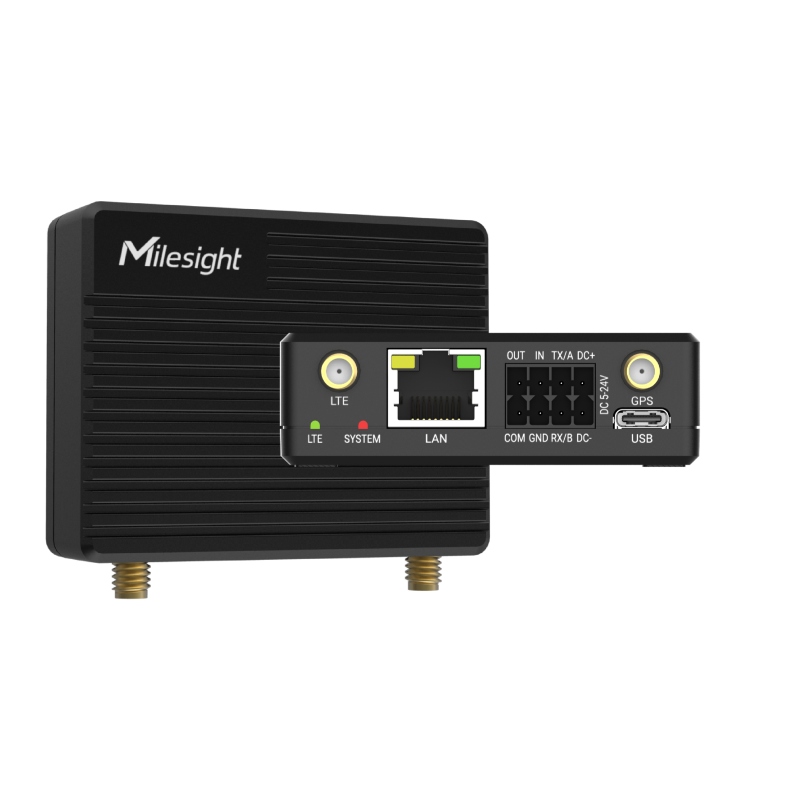

Milesight UR41 Mini Industrial router

Network Router

Key Features

Milesight mini industrial router UR41 supports 4G connection, and also satisfies multi-type local data access requirements

through rich industrial interfaces, including DI, DO, RS232 or RS485. UR41 make it easy for forming a reliable, secure,

and maintainable solution through its built-in watchdog and secure VPN tunnels,

realizing stable data transmission and high-speed mobile connectivity.

Global4GLTECAT4/3G network with multiple carrier networks

Easy to connect with diverse wired devices through DI/DO/RS232/RS485 interfaces

Power-saving design for both idle mode and standby mode for providing users with an energy-saving

Option Industrial-Grade Design

NXP industrial grade processor

Rugged enclosure with IP30 protection

Desk or wall mounting

SKU:MS-UR41

Specifications

Operating Temperature

-40°C to + 60°C

Brand

Milesight

Mobile Compatible

True

Power Consumption

Data link: 226mA (peak) @ 12V Standby mode: 6.3 mA @12V

Dimensions

70 x 55 x 22mm Antenna Connector Excluded

Weight

103g

Atr61

-40°C to +60°C

Certifications

CE, FCC, RoHS

PoE

True

Warranty

1 year

Managed

False

Rack Mount

True

Downloads

Milesight UR41 Router Data Sheet
