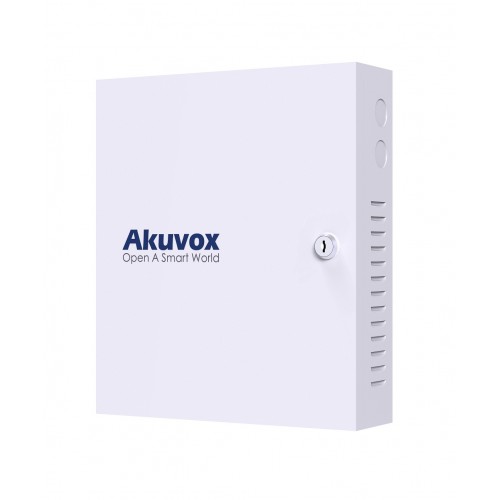

AKUVOX EC33 Elevator Controller

Akuvox Controller

SKU AKV-EC33 Category Tags ,

Key Features

AKUVOX – Elevator Controller, 32 Relay Output, Storage: 120,000 cards & 200,000 events, TCP/IP, RS485

Akuvox EC33 is an IP-based elevator access controller, which works with all Akuvox intecoms and access control termials.

It is typically used in mutifamily ad office buildings to enhance buiding access security.

10/100M Ethernet

Large storage for 20,000 card and 100,000 logs

EC33 supports 32 outputs an can connect to an expansion controller to expand to 64 outputs

RS485 port to connect to a expansion controller

Fire Alarm input to support emergency door release or normal lift commands

Works with other Akuvox devices by using HTTP commands

Akuvox Cloud supported

SKU:AKV-EC33

Specifications

Ethernet

10/100M Ethernet
Brand

Akuvox
Colour

White
Connection Type

PoE
Dimensions

320 x 270 x 75 (mm)
PoE

True
Interface

TCP/IP
Power Supply

100～240VAC Input or PoE
Warranty

2 years
Day/Night

False
Camera

False
Casing

False
Operating Humidity

10%~90%

Downloads

Akuvox EC33 Data Sheet
