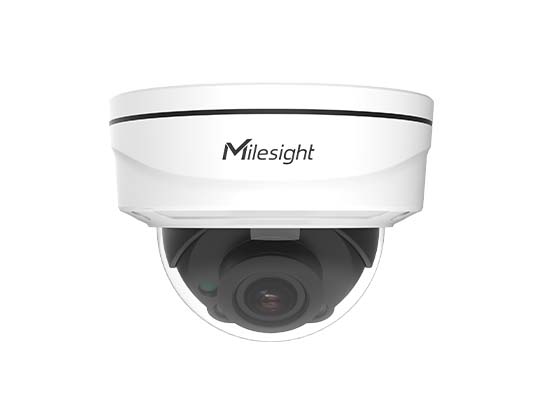

Milesight MS-C8172-FPE AI Motorized Pro Series Dome

Pro Series

SKU MS-C8172-FPE Categories , , , Tags ,

Key Features

Milesight AI Motorized Pro Dome Network Camera in WHITE: 8MP, 4K, 3840*2160 @30fps, Motorized lens  2.7~13.5mm, 50m IR, IP67

NDAACompliance

Smart IR II (Combining the High Beam and Low Beam to adjust IR intensity to fit different lighting conditions.)

140dB Super WDR (Excellent performance even when the ratio of the luminosity of brightest and darkest is up to 140dB.)

Advanced Functions (Boasting to support various advanced functions such as HLC, ROI.)

SIP(Session Initiation Protocol. Providing audio/alarm/intercom and video streaming for mobile phones and video phones.)

1TB(Supporting ultra-large external microSD/SDHC/SDXC card storage up to 1TB.)

Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+ saves 70%~80% bandwidth that of H.264.

SKU: MS-C8172-FPE

Specifications

Brand

Milesight
Mobile Compatible

False
Alarm Linkage

False
Explosion Proof

False
Day/Night

True
Removable IR-Cut Filter

False
Software Development Kit

False
Water and Dust Resistant

False
Connection Type

PoE
Frame Rate

30 FPS
Infrared

Yes
IP Rating

IP67
Megapixels

4K
Vandal Rating

IK10
Power Consumption

Max.:6.7W(DC12V),8.1W(PoE)
Power Input

PoE(802.3af)/DC12V±10%
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Series

Pro Series
Dimensions

Φ143mmX108.4mm
Weight

1100g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Network Interface

IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP, SNMP,UPnP,Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2
Storage

NAS(SupportNFS,SMB/CIFS),ANR
Audio Compression

G.711/AAC/G.722/G.726
Warranty

2/3Years
Alarm Input

Yes
Body Type

Dome
Audio Capability

Yes
Audio Effective Range

Yes
Audio Input

Yes
Audio Interface

Yes
Basic Event Detection

Yes
Event Action

Yes
Event Detection

Yes
Event Trigger

Yes
IR Distance

Up to 50m
Iris Type

Auto
Privacy Mask

Yes
S/N Ratio

>55dB
Scheduled Task

Yes
Smart Detection

Yes
Smart IR

Yes
Lens Type

WDR

Downloads

Milesight C8172-FPE Data Sheet
