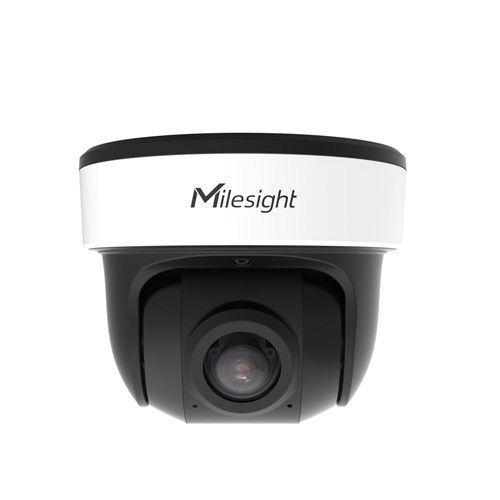

Milesight MS-C8176-PE/W AI 180° Panoramic Mini Dome

AI Panoramic Dome

SKU MS-C8176-PE/W Categories , , , Tag

Key Features

Milesight AI 180° Panoramic Mini Dome Network Camera in WHITE: 8MP, 4K, 3840*2160 @25fps, Fixed Lens 1.68mm, 15m IR, IP67

NDAACompliance

120dBSuperWDR(Excellentperformance even when the ratio of the luminosity of brightest and darkest is up to 120dB.)

AdvancedFunctions(Boasting to support various advanced functions such as HLC, ROI.)

1TB(Supportingultra-large external microSD/SDHC/SDXC card storage up to 1TB.)

Integrated Junction Box (Ensuring the hassle-free installation and reliable operation with neat cable management.)

Built-in Microphone (Using advanced codecs to provide clearer voice and robust performance.)

SmartStream(Bandwidth, storage and bit rate are saved with Smart Stream On, e.g. H.265+ saves 70%~80% bandwidth that of H.264.)

SKU: MS-C8176-PE/W

Specifications

Brand

Milesight
Connection Type

PoE
Compression Rate

H.265/H.264/MJPEG
Frame Rate

30 FPS
Infrared

up to 15M
IP Rating

IP67
Megapixels

4K
Mobile Compatible

False
Vandal Rating

IK10
Power Consumption

Max.:7.6W(DC12V),9W(PoE)
Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Dimensions

Φ127mmX107mm
Weight

853g
Atr61

-40℃~60℃
Humidity

0~95%(Non-condensing)
Certifications

NDAA
Network Interface

1*RJ4510M/100MEthernetPort
Storage

NAS(SupportNFS,SMB/CIFS),ANR
Audio Compression

G.711/AAC/G.722/G.726
Alarm Linkage

False
Audio Capability

Yes
Audio Input

Yes
Audio Interface

Yes
Basic Event Detection

Yes
Event Action

Yes
Event Detection

Yes
Explosion Proof

False
IR Distance

15M
Day/Night

False
Removable IR-Cut Filter

False
ROI

Up to 8 areas
S/N Ratio

>55dB
Software Development Kit

False
Water and Dust Resistant

False
WDR Technology

Yes
Working Humidity

0~95%(Non-condensing)
Lens Type

[email protected]

Downloads

Milesight C8176-PE/W Data Sheet
