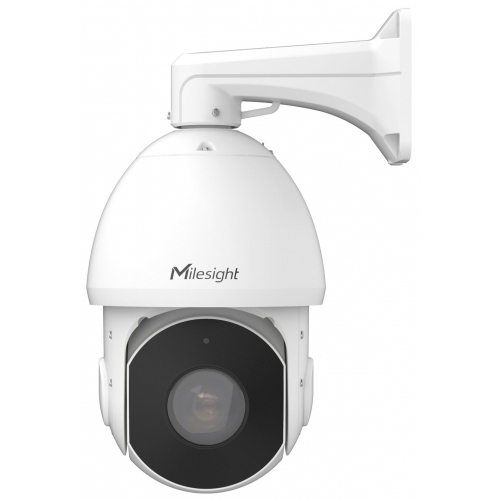

Milesight MS-C8241-X36PE AI, X36 Speed Dome 4K White

Milesight VCA Speed Dome

Key Features

Milesight AI 23X/30X/36X/42X Speed Dome Network Camera in WHITE: 8MP, 4K, 3840*2160 @30fps, 36X  AF Lens 5.7~205.2mm, 300m IR, IP66

Smart IR II (Combining the High Beam andLowBeamto adjust IRintensity to fit different lighting conditions.)

140dB Super WDR (Excellent performanceeven when the ratio of the luminosity of brightest and darkest is up to 140dB.)

90fps High Frame Rate (Cameracaneasily catch images with no latency despite of the high-speed movement.)

0.005LuxStarlight (Deliver high detailed color images even in low light environment reaching 0.005Lux.)

Smart PTZ Motion Detection (Panandtilt to the position of motion detected area automatically and zoom in synchronously.)

IR Distance up to 300m (Enabling 300 meters distinct images at night with IR LEDs.)

300 Preset Positions (The user caneasily control the lens position via mouse to monitor interested area and set up to 300 preset positions for patrolling.)

Keyboard Control (Shortcut keys for PTZ control via Milesight Keyboard.)

Smart Stream (Bandwidth, storage and bit rate are saved with Smart Stream On, eg, H.265+saves 70%~80% bandwidth that of H.264.)

Specifications

Brand

Milesight

Compression Rate

H.265/H.264/MJPEG

Frame Rate

60 FPS

IP Rating

IP66

Megapixels

4K

Mobile Compatible

True

Vandal Rating

IK10 Optional

Power Consumption

Min.: 11.5W (DC 12V), 14.5W(PoE) Max.: 24.5W (DC 12V), 28.4W(PoE)

Video Compression

H.265+/H.265(HEVC)/H.264+/H.264/MJPEG

Dimensions

Φ205mmX308mm

Weight

4Kg

Atr61

Temperature:-40℃~60℃

Humidity

Humidity: 0~95%(Non-condensing)

Certifications

Yes

Network Interface

IPv4/IPv6,ARP,TCP,UDP,RTCP,RTP,RTSP,RTMP,HTTP,HTTPS,DNS,DDNS,DHCP,FTP,NTP,SMTP,SNMP,UPnP, Bonjour,SIP,PPPoE,VLAN,802.1x,QoS,IGMP,ICMP,SSL,TLS1.2

Storage

NAS(SupportNFS,SMB/CIFS),ANR

Audio Compression

G.711/AAC/G.722/G.726

Audio Output

Yes

Warranty

2 years – 3 years optional

Alarm Input

Yes

Body Type

PTZ (Pan Tilt Zoom)

Alarm Linkage

False

Audio Capability

Yes

Audio Input

Yes

Event Action

Yes

Event Detection

Yes

Event Trigger

Yes

Explosion Proof

False

Nightvision

SNV II (Supreme Night Visibility) for Low Light Conditions

IR Distance

Up to 300m

Iris Type

Auto

Day/Night

True

ONVIF

Yes

Pan Range

360°endless/PanManualSpeed:0.1°~250°/s,PanPresetSpeed:250°/s

Pan Speed

360°endless/PanManualSpeed:0.1°~250°/s,PanPresetSpeed:250°/s

PTZ Functionalities

Yes

Patrol Scan

8Patrols,upto48presetseachpatrol

Pattern Scan

4 Patterns

Privacy Mask

Yes

Removable IR-Cut Filter

False

S/N Ratio

>55dB

Software Development Kit

False

Water and Dust Resistant

False

Lens Type

5.7~205.2mm, 36XOptical Zoom

Downloads

Milesight MS_C8241-X36PE Data Sheet
